Home ProductsTitanium Carbide Nitride Powder3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder

3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder

3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder
3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder 3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder 3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder 3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder 3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder
Basic Information
Place of Origin: Zhuzhou, China
Brand Name: LING FENG
Certification: ISO9001: 2015
Minimum Order Quantity: 1kg
Price: Negotiable
Packaging Details: Steel drum
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 200 MT/year
Contact Now
Appearance: Dark Grey Powder Molecular Formula: TiCN
Melting Point: 2810℃ Boiling Point: 3900℃
Crystal Structure: Black Cubic Grade: TiCN(3:7), TiCN(4:6), TiCN (5:5), TiCN (6:4), TiCN (7:3)
CAS: 12654-86-3
Highlight:

Dark Grey Titanium Carbide Nitride Powder

,

3900℃ Boiling Point Titanium Carbide Nitride

,

3900℃ Titanium Carbide Nitride Powder

Titanium Carbide Nitride Powder, cemented Carbide additive, thermal spraying,ceramic material



Material: Titanium Carbide Nitride Powder.



Grade: TiCN(3:7), TiCN(4:6), TiCN (5:5), TiCN (6:4), TiCN (7:3).


Appearance: Dark grey powder.


Application : Used for cemented carbide additive, powder metallurgy, cutting tools, ceramic material and steel industry.



3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder 0



3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder 1





3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder 2



Characteristic: Black cubic crystal structure. Melting point: 2810℃, boiling point: 3900℃, relative density: 5.77g/cm3. Slightly harder than quartz.



Specification:





Grade TiCN(3:7) TiCN(4:6) TiCN (5:5) TiCN (6:4) TiCN (7:3)
Impurity content% MAX T.C. 6.9±0.3 8.5±0.8 10.0±0.5 11.8±0.8 13.5±0.5
F.C. ＜0.3  ＜0.3 ＜0.2 ＜0.3 ＜0.3 ＜0.2 ＜0.3 ＜0.3 ＜0.2 ＜0.3 ＜0.3 ＜0.3 ＜0.3 ＜0.3 ＜0.3
N 13.0-14.0 12.0-13.5 10.8-11.8 8.5-9.8 6.8-7.8
O ＜1.0  ＜0.8 ＜0.3 ＜1.0 ＜0.8 ＜0.3 ＜1.0 ＜0.8 ＜0.3 ＜1.0 ＜0.8 ＜0.3 ＜1.0 ＜0.8 ＜0.3
Fe 0.2 0.2 0.2 0.2 0.2
Fsss size (um)  ＜1.0  1.5±0.5  3.0±1.0  ＜1.0  1.5±0.5  3.0±1.0  ＜1.0  1.5±0.5  3.0±1.0  ＜1.0  1.5±0.5  3.0±1.0  ＜1.0  1.5±0.5  3.0±1.0

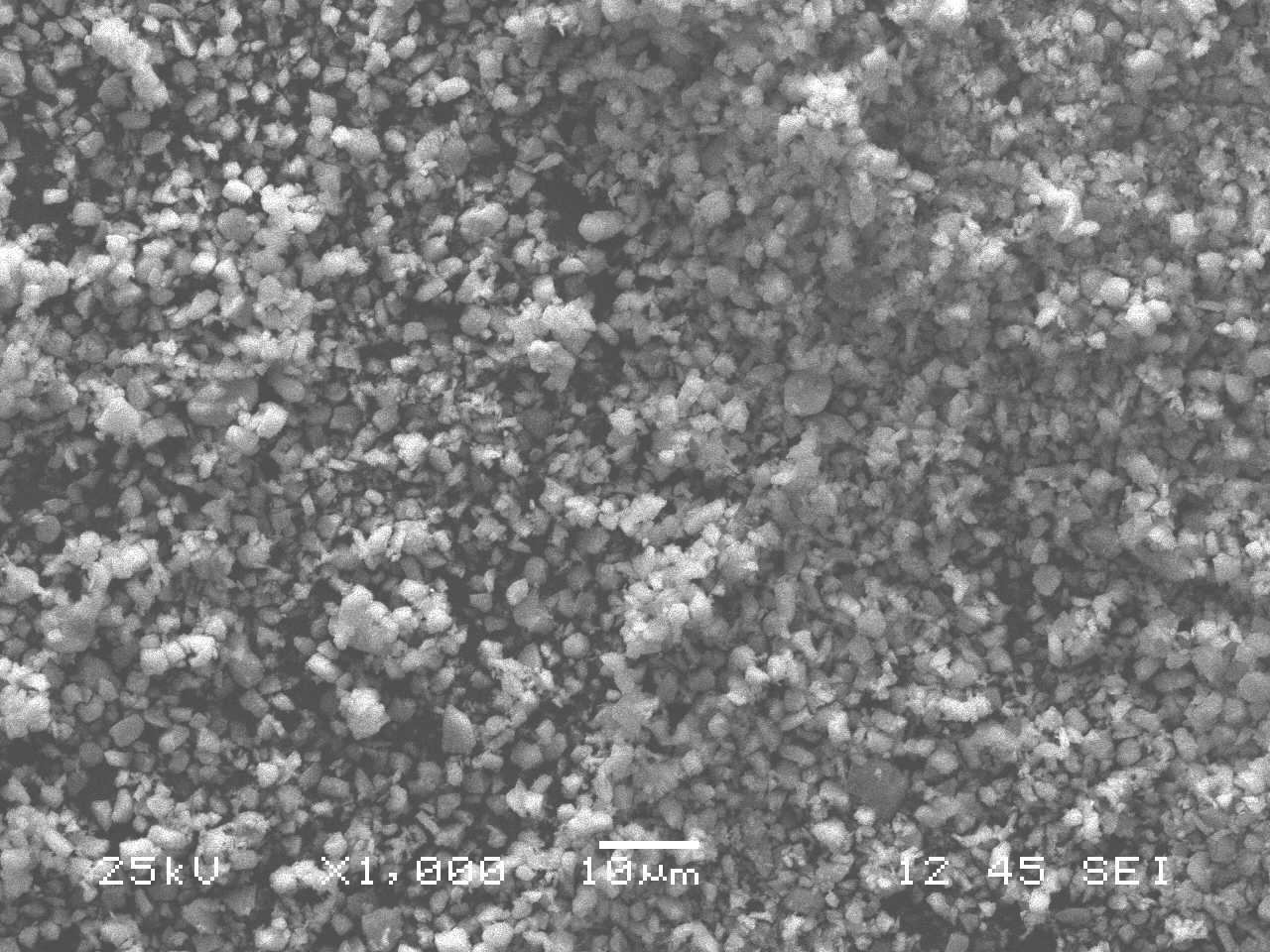

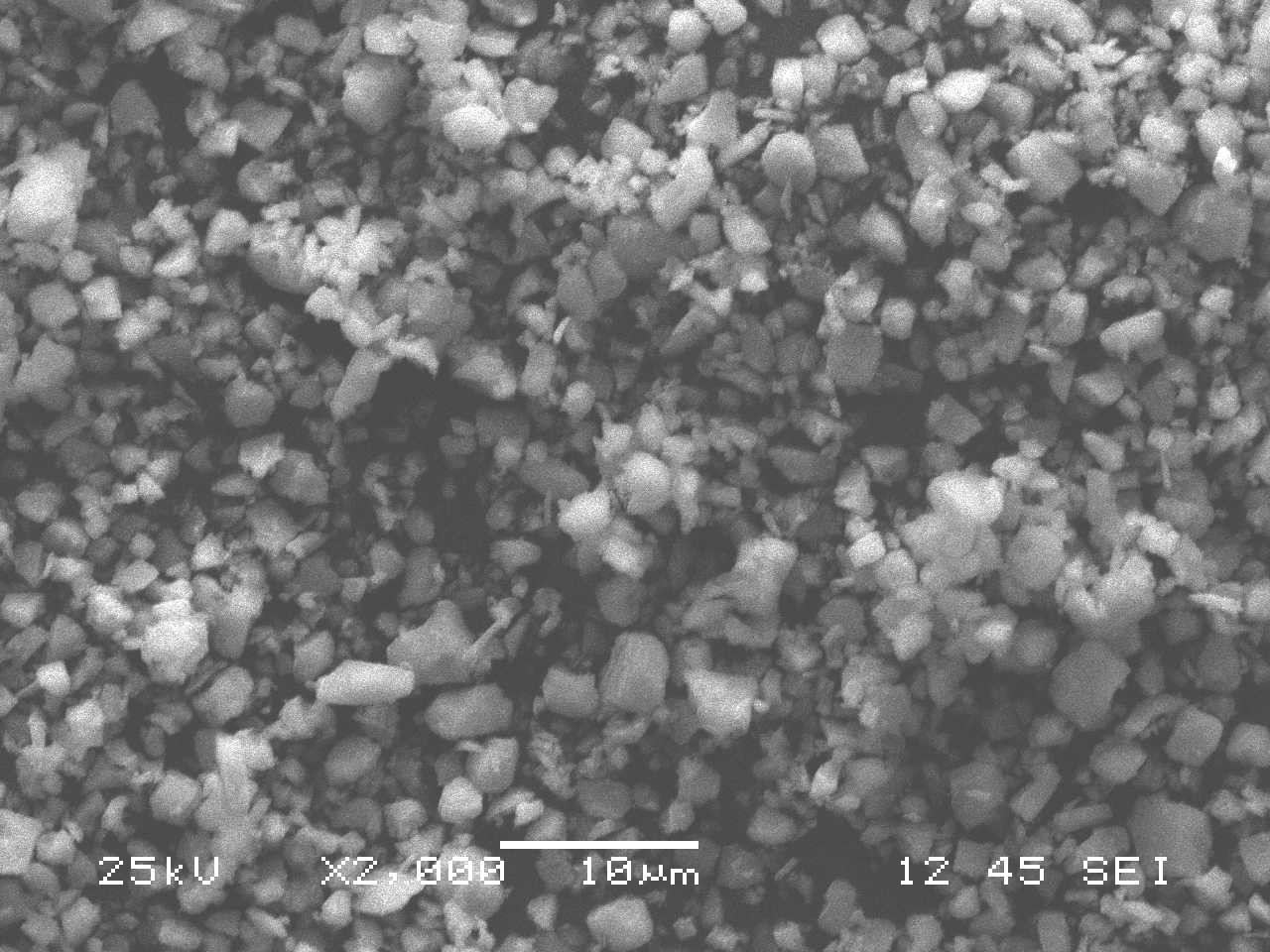

SEM:


3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder 3




3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder 4




3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder 5




3900℃ Boiling Point Dark Grey Titanium Carbide Nitride Powder 6

Tag: Titanium Carbide Nitride Powder, cemented Carbides, thermal spraying,metal carbide, ceramic material.

Summarize: Titanium nitride is a glossy black powder, is a "zero dimensional" ternary solid solution, with the advantages of TiC and TiN, high melting point, high hardness, wear resistance, oxidation resistance, corrosion resistance and other characteristics, and has good thermal conductivity, electrical conductivity and chemical stability.TiCN has a lower friction coefficient and a higher hardness than TiN. Titanium-based tools are more suitable for cutting hard materials such as stainless steel, titanium alloy and nickel alloy, with better wear resistance and high temperature stability, which can significantly improve the service life of the tool.Titanium nitride carbide coating has excellent mechanical and tribological properties. As a hard and wear-resisting coating, it has been widely used in cutting tools, drills and moulds, and has a wide application prospect.

Tag:

TiCN Titanium Carbide Nitride Powder

2810℃ TiCN Powder

ISO9001 CAS 12654-86-3
