| Place of Origin: | Zhuzhou, China |
|---|---|
| Brand Name: | LING FENG |
| Certification: | ISO9001: 2015 |
| Minimum Order Quantity: | 1kg |
| Price: | Negotiable |
| Packaging Details: | Steel drum |
| Delivery Time: | Negotiable |
| Payment Terms: | Negotiable |
| Appearance: | Grey Powder | Molecular Formula: | TiC |
|---|---|---|---|
| Melting Point: | 3160℃ | Boiling Point: | 4300°C |
| Density: | 4.93 G/cm3 | Grade: | FTiC-1, FTiC-2, FTiC-3, TiC-C-4 |
| EINECS: | 235-120-4 | CAS: | 12070-08-5 |
| High Light: | CAS 12070-08-5 Titanium Carbide,High Melting Point Titanium Carbide,High Melting Point CAS 12070-08-5 |
||

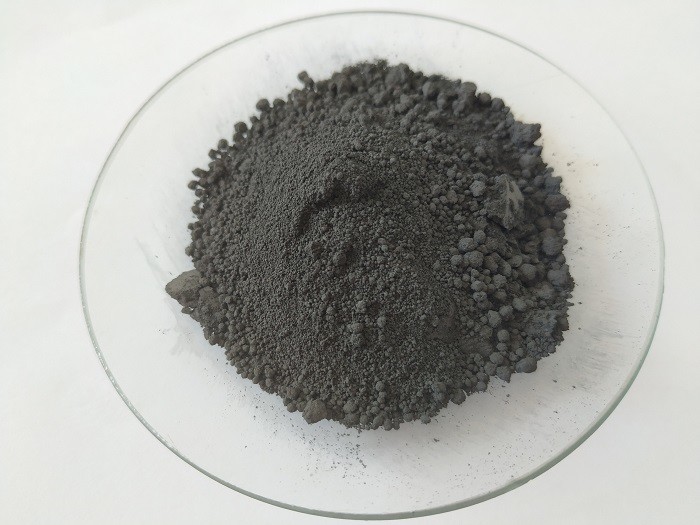

Titanium Carbide Powder for Sealing Ring
Material: Titanium Carbide Powder.
Grade: FTiC-1, FTiC-2, FTiC-3, TiC-C-4 .
Appearance: Grey powder.
Application : Titanium carbide powder for Sealing Ring.
For cemented carbides, steel-boned cemented carbide and Weld core in Electric welding industry.
Characteristic: TiC=59.91, is grey powder with a density of 4.93 g/cm3, melting point is 3160°C, boiling point is 4300°C.By adding 6%-30% titanium carbide to wc-co cemented carbide to form tic-wc solid solution with WC, the red-heat, wear resistance, oxidation resistance, corrosion resistance and other properties of the alloy can be significantly improved, which is more suitable for the processing of steel than wc-co cemented carbide. It is also be used in Ni-Mo and other alloys as binder to make non tungsten cemented carbide, which can improve the turning speed, the precision and the finish of the workpiece.
Specification:
| Grade | FTiC-1 | FTiC-2 | FTiC-3 | TiC-C-4 | |
|
Impurity content % |
T.C | ＞19.0 | ＞19.0 | ＞18.8 | ＞18.8 |
| F.C | ＜0.50 | ＜0.50 | ＜0.50 | ＜0.50 | |
| O | 1.2 | 0.8 | 0.6 | 0.3 | |
| N | 0.6 | 0.6 | 0.6 | 0.6 | |
| Fe | 0.2 | 0.15 | 0.15 | 0.4 | |
| Si | 0.02 | 0.02 | 0.02 | 0.02 | |
| Ca | 0.02 | 0.02 | 0.02 | 0.02 | |
| Fsss size (um) | ＜1.0 | 1.5±0.50 | 3.0±1.0 | -- | |
| Sieve size of TiC-C-4 ( mesh) | -60/+325,-100/+200, -200/+325, -325 (Can be negotiated) | ||||
