| Place of Origin: | Zhuzhou, China |
|---|---|
| Brand Name: | LING FENG |
| Certification: | ISO9001: 2015 |
| Minimum Order Quantity: | 1kg |
| Price: | Negotiable |
| Packaging Details: | Steel drum |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 200 MT/year |
| Appearance: | Dark Grey Powder | Molecular Formula: | TiCN |
|---|---|---|---|
| Melting Point: | 2810℃ | Boiling Point: | 3900℃ |
| Crystal Structure: | Black Cubic | Grade: | TiCN(3:7), TiCN(4:6), TiCN (5:5), TiCN (6:4), TiCN (7:3) |
| High Light: | Wear Resistant Titanium Carbide Nitride Powder,Steel Industry Titanium Carbide Nitride Powder,Powered Titanium Carbide Nitride |
||
Material: Titanium Carbide Nitride Powder.
Grade: TiCN(3:7), TiCN(4:6), TiCN (5:5), TiCN (6:4), TiCN (7:3).

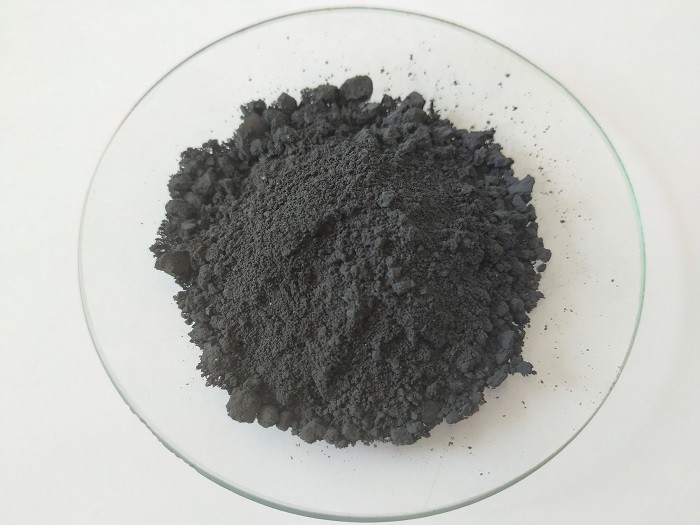

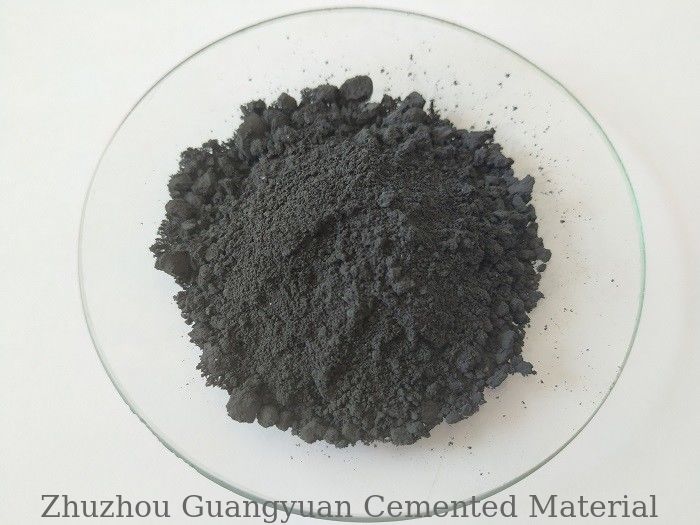

Appearance: Dark grey powder.
Application : Used for cemented carbide additive, powder metallurgy, cutting tools, ceramic material and steel industry.
Characteristic: Black cubic crystal structure. Melting point: 2810℃, boiling point: 3900℃, relative density: 5.77g/cm3. Slightly harder than quartz.
Specification:
| Grade | TiCN(3:7) | TiCN(4:6) | TiCN (5:5) | TiCN (6:4) | TiCN (7:3) | |||||||||||
| Impurity content% MAX | T.C. | 6.9±0.3 | 8.5±0.8 | 10.0±0.5 | 11.8±0.8 | 13.5±0.5 | ||||||||||
| F.C. | ＜0.3 | ＜0.3 | ＜0.2 | ＜0.3 | ＜0.3 | ＜0.2 | ＜0.3 | ＜0.3 | ＜0.2 | ＜0.3 | ＜0.3 | ＜0.3 | ＜0.3 | ＜0.3 | ＜0.3 | |
| N | 13.0-14.0 | 12.0-13.5 | 10.8-11.8 | 8.5-9.8 | 6.8-7.8 | |||||||||||
| O | ＜1.0 | ＜0.8 | ＜0.3 | ＜1.0 | ＜0.8 | ＜0.3 | ＜1.0 | ＜0.8 | ＜0.3 | ＜1.0 | ＜0.8 | ＜0.3 | ＜1.0 | ＜0.8 | ＜0.3 | |
| Fe | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |||||||||||
| Fsss size (um) | ＜1.0 | 1.5±0.5 | 3.0±1.0 | ＜1.0 | 1.5±0.5 | 3.0±1.0 | ＜1.0 | 1.5±0.5 | 3.0±1.0 | ＜1.0 | 1.5±0.5 | 3.0±1.0 | ＜1.0 | 1.5±0.5 | 3.0±1.0 | |
